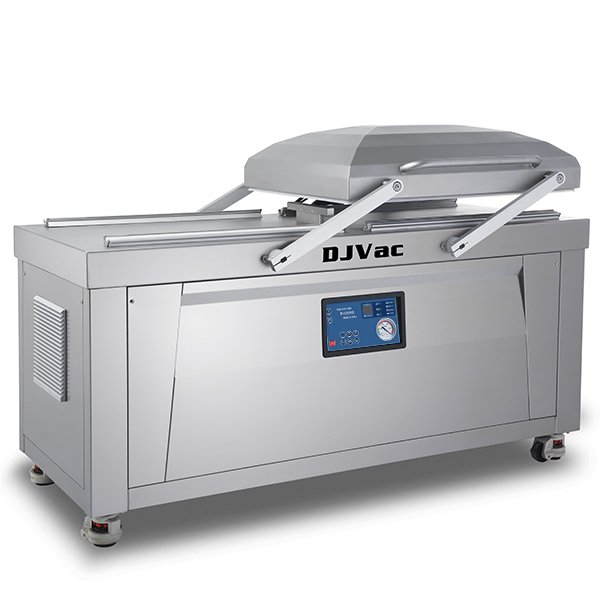

Double Chamber Double Chamber Vacuum Machine

Double Chamber Vacuum Packaging Machines series are equipped with two chambers While products are being packed in the first chamber, the second chamber can be unloaded and loaded again. This makes the packaging procedure especially efficient.


Features:



Smart Digital Control Panel

• Quick multi programs switch

• Panel mask Support customization

• Support manual sealing

• Accurate parameter control


Heavy Duty Adjustable Caster

• The leveling retractable casters cacn fix the machine

• Can adjust the levelness of machine in inclined floor

• Wear-resisting and slince universal wheels






Food-Grade Main Structure

• Constructed of high-quality SUS304 stainless steel

• Use Switzerland laser cutting device to produce

• Smooth feeling by meticulous surface treatment

• Strong structure by finite element analysis

• Glossy chamber and beautiful brushed shell


Robust Sealing System

• Design patent for fastener of seal wire for add service life

• Double-seam is alternative

• Double-seam with cutting-off is alternative

• Two sealing bars is alternative

• Plug-in without cables sealing system is alternative






Hermetic Electrical Box Design

• Simple to open or close the box

• Dustproof and splash-proof design

• Clear distribution of electricals make maintaining easily


Easily Maintaining Design

• Simple to open or close the shell

• Clear oil level viewing window

• Not difficult to replace the oil of vacuum pump

• Easy to displace wearing parts


Options:





Gas Flush System

• Flush protective gas into pack bags

• 2 or 3 nozzles in one side to adapt various pack size

• With convenient clamp of bag


Filling plates

• Adjust the height of chamber to suit packed items

• Decrease the space of chamber to reduce the time of suction







Pouching Assistance

 • assist items to be pouched into bag smoothly













Examples:
















Fresh Meat Sausage Sous-Vide Seafood Sauce Pickle






Cereal Vegetable Tea & Herb Money Document Clothing






Bacon Chicken Duck Chop Metal Industrial items
Technical Specification









  Model

DZ-500 2S DZ-600 2S DZ-700 2S DZ-800 2S



  Vacuum Pump Capacity *1

20×2/40/63 m3/h

20×2/40/63 m3/h

63/100 m3/h

160/200 m3/h



  Seal  Length | S

500mm×2 600mm×2 700mm×2 800mm×2



  Distance Between Seal Bar | B

440mm

440mm 510mm 770mm



  Alignment Of Seal Bar










  Chamber Depth | D

160mm 160mm
210mm
280mm



  Chamber Size

650×590mm
760×590mm
850×660mm
960×930mm



  Distance From Floor To Platform | A

800mm 800mm 800mm 800mm



  Power*2

1.8kW
1.1kW
1.5kW
2.2kW



  Connection*3

230V/50Hz
380V/50Hz,3Phase
380V/50Hz,3Phase
380V/50Hz,3Phase



  Net Weight / Gross Weight *4

226/274kg
278/332kg
465/529kg
635/705kg



  Dimensions | W x L x H  (mm)

700×1285×970
700×1505×970
780×1695×1020
1040×1905×1090



  Shipping Dimensions (mm) 770×1355×1150 770×1575×1150 850×1765×1200 1110×1975×1270



  Circle Time 1-2/min 1-2/min
1-2/min
1-2/min





  *1 pump could be alternative and the bold capacity is recommended          *2  in condition of recommended vacuum pump capacity

  *3 could be customized      *4  in condition of recommended vacuum pump capacity
