Tabletop MAP Tabletop MAP Tray Sealer

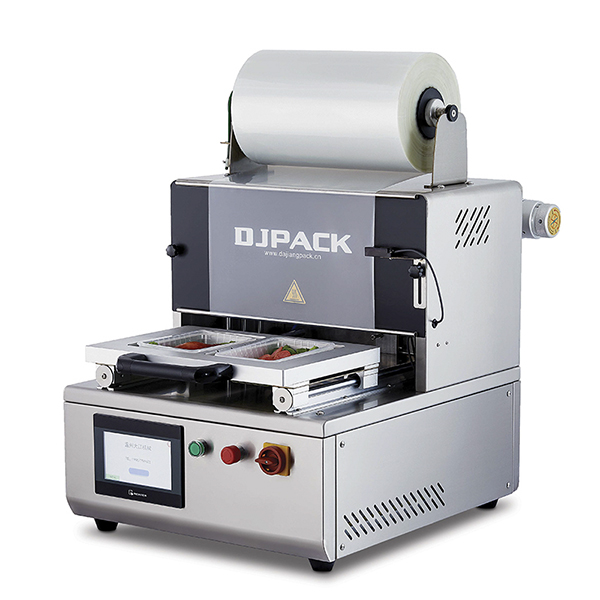

The DX-1 Tabletop MAP Tray Sealer allows trays to be packaged in a very limited space and can thus be used in a versatile manner. It’s an economical solution for the packaging of small batches. The DX-1 is operated slowly by electricity, it can be individually equipped. It’s widely applicable for the package of raw and cooked meat, seafood, dairy product, fruit and vegetable, rice and food.


Features:



PLC Programmable Control System

• PID temperature regulation precisely control temprature



Touch Control Panel Interface

• Quick multi programs switch

• Accurate parameter control







Food-Grade Main Structure

• Hygienic to food

• Easy to clean



High-precision Tray Moulds






Efficient Heat Dissipation


Easily replaceable Moulds


Options:






MAP Preservation System


An Other Mould







Trays



Film












Examples:









Fresh Meat

Clean Vegetable

Fruit

Ready meal













Technical Specification

 Model

DX-1 DX-1G

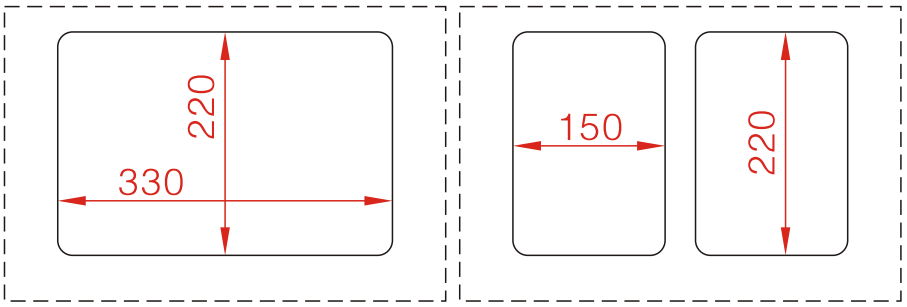

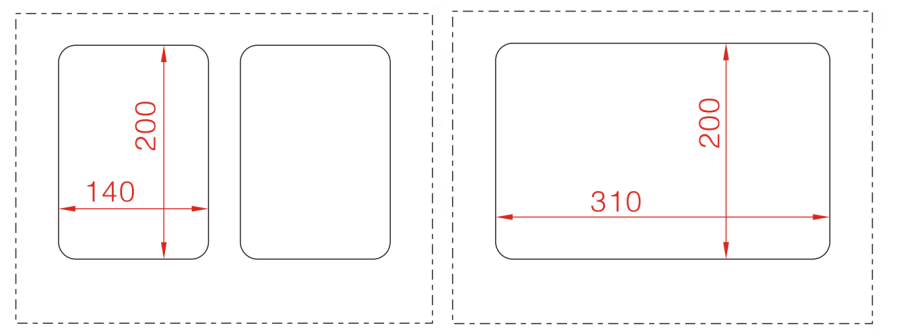

 Max. Tray Size*1




 Max. Sealing Plate

330×200mm



 Max. Depth Of Tray

70mm



 Max. Width Of Film

390mm



 Max. Diameter of Film

220mm



 Packing Speed

7-8 cycle/min 5-6 cycle/min



 Air Exchanging Rate / ≥99%



 Power Consumption

1.9kW



 Connection*2

230V/50Hz or 110V/60Hz



 Net Weight

106kg
110kg



 Machine Size | W x L x H  (mm)

810×850×750







*1 The machine is normally sold with one mould, and the mould could be customized.           *2  Connection could be customized.
