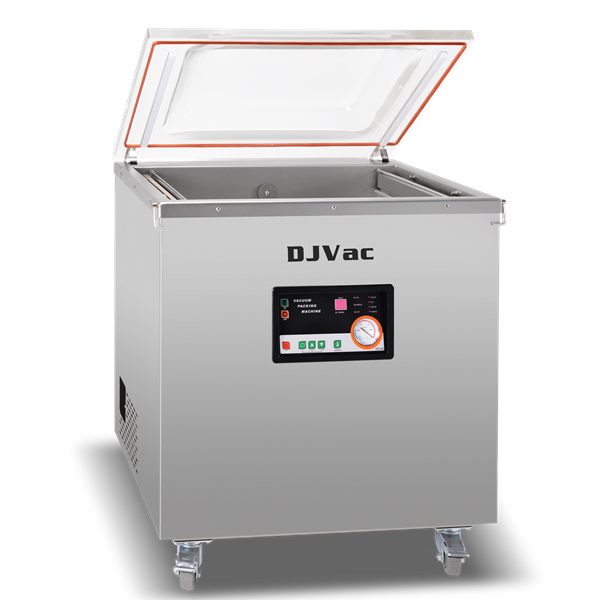

Commercial Floor Type Commercial Freestanding Vacuum Machine






Features:









 Smart Digital Control Panel

 All Transparent Visual Lid

 • Multiple program memories with quick switch button  • Made of High-impact acrylic material
 • Easy and fast to remove and install the panel by hand  • Durable sealing lid gasket by Special “V” sharped design
 • Totally adjustable for customers‘ various demands  • With buckle of lid to smoothly lock and unlock
 • Can manual stop and sealing for packaging of liquids
 • Connect with effortless unusual designed hinges
 • Splash-proof design to adapt many places






 Food-Grade Main Structure


 Robust Sealing System

 • Constructed of high-quality SUS304 stainless steel
 • Design patent for fastener of seal wire for add service life
 • Use advanced laser cutting technology to produce
 • Double-seam is alternative
 • Smooth feeling by meticulous surface treatment
 • Double-seam with cutting-off is alternative
 • Maximum cost-effectiveness by finite element analysis
 • Two sealing bars is alternative
 • Glossy chamber and beautiful brushed shell
 • Plug-in without cables sealing system is alternative





 Reasonable Thermal Design

 Easily Maintaining Design
 • Design patent for thermal holes of fan
 • Simple to open or close the shell
 • Design patent for thermal holes of vacuum pump
 • Clear Oil level viewing window
 • Finger can not be insert into all thermal holes
 • Not difficult to replace the oil of vacuum pump
 • Ensure machine is available after long duration of work
 • Easy to displace wearing parts






Options:









 Gas Flush System
 Filling plates
  • Flush protective gas into pack bags
 • Adjust the height of chamber to suit packed items
  • 2 or 3 nozzles in one side to adapt various pack size
 • Decrease the space of chamber to reduce the time of suction
  • With convenient clamp of bag










 Inclined Support

 Pouching Assistance
  • Special design for liquids packaging
 • assist items to be pouched into bag smoothly
  • Easy to set up and take away

  • Adjustable baffle for different package size
























Examples:















Fresh Meat Sausage Sous-Vide Seafood Sauce Pickle






Cereal Vegetable Tea & Herb Money Document Clothing






Bacon Chicken Duck Chop Metal Industrial items

المواصفات الفنية





















  Model DZ-460 2G DZ-500 2G DZ-600 2G DZ-700 2ES



  Vacuum Pump Capacity *1

20×2/45 m3/h

20×2/45 m3/h

20×2/63/100 m3/h

20×2/63/100 m3/h



  Seal  Length | S

460mm×2 520mm×2 600mm×2 700mm×2



  Distance Between Seal Bar | B

650mm

450mm 630mm 540mm



  Alignment Of Seal Bar










  Chamber Depth | D / D*2

150/220mm 150/230mm
180/245mm
155/225mm



  Chamber Size

720×480mm
520×540mm
700×620mm
720×610mm



  Distance From Floor To Platform | A

880mm 880mm 880mm 880mm



  Power*3

1.8kW
1.8kW
1.8kW
1.8kW



  Connection*4

230V/50Hz
230V/50Hz
230V/50Hz
230V/50Hz



  Net Weight / Gross Weight *5

141/170kg
128/151kg
150/185kg
157/194kg



  Dimensions | W x L x H  (mm)

630×790×985
675×590×990
760×770×975
755×790×985



  Shipping Dimensions (mm)  690×870×1130 740×660×1130 870×870×1130 850×890×1130



  Circle Time 1-2/min 1-2/min
1-2/min
1-2/min




  *1 pump could be alternative and the red capacity is recommended     *2 with high DOM-Lid     *3  in condition of recommended vacuum pump capacity

  *4 could be customized      *5  in condition of recommended vacuum pump capacity
