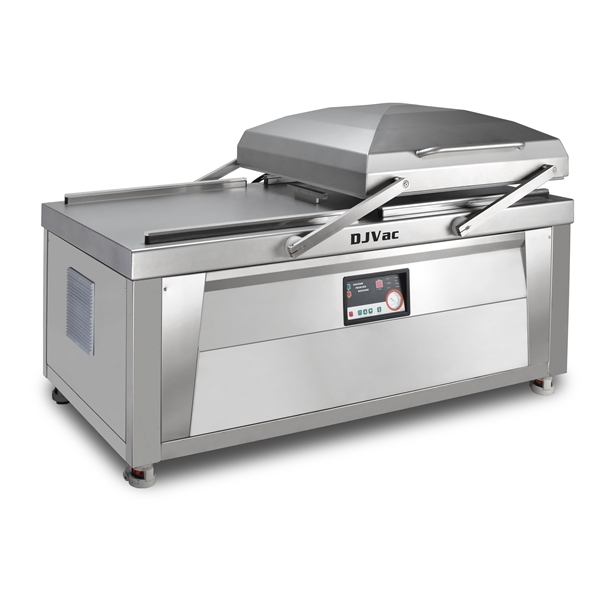

Double Chamber Double Chamber Vacuum Machine







Options:









 Gas Flush System
 Filling plates
 • Flush protective gas into pack bags
 • Adjust the height of chamber to suit packed items
 • 2 or 3 nozzles in one side to adapt various pack size
 • Decrease the space of chamber to reduce the time of suction
 • With convenient clamp of bag























Examples:















Fresh Meat Sausage Sous-Vide Seafood Sauce Pickle






Cereal Vegetable Tea & Herb Money Document Clothing






Bacon Chicken Duck Chop Metal Industrial items

المواصفات الفنية





















  Model

DZ-500 2S DZ-600 2S DZ-700 2S DZ-800 2S



  Vacuum Pump Capacity *1

20×2/45/63 m3/h

20×2/45/63 m3/h

63/100 m3/h

100/160 m3/h

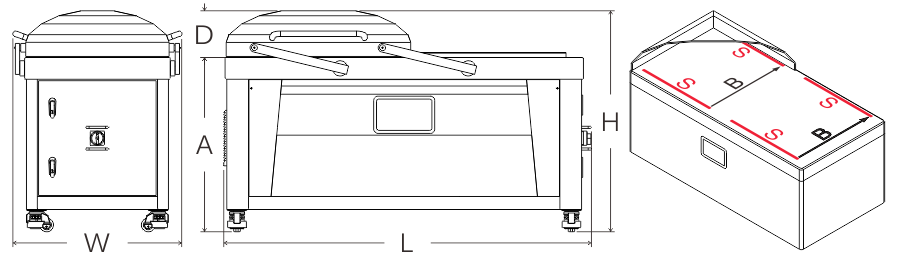

  Seal  Length | S

500mm×2 600mm×2 700mm×2 800mm×2



  Distance Between Seal Bar | B

440mm

440mm 510mm 770mm



  Alignment Of Seal Bar










  Chamber Depth | D

160mm 160mm
210mm
280mm



  Chamber Size

650×590mm
760×590mm
850×660mm
960×930mm



  Distance From Floor To Platform | A

800mm 800mm 800mm 800mm



  Power*2

1.8kW
1.1kW
1.5kW
2.2kW



  Connection*3

230V/50Hz
380V/50Hz,3Phase
380V/50Hz,3Phase
380V/50Hz,3Phase



  Net Weight / Gross Weight *4

226/274kg
278/332kg
465/529kg
635/705kg



  Dimensions | W x L x H  (mm)

700×1285×970
700×1505×970
780×1695×1020
1040×1905×1090



  Shipping Dimensions (mm) 770×1355×1150 770×1575×1150 850×1765×1200 1110×1975×1270



 Circle Time 1-2/min 1-2/min
1-2/min
1-2/min





  *1 pump could be alternative and the bold capacity is recommended          *2  in condition of recommended vacuum pump capacity

  *3 could be customized      *4  in condition of recommended vacuum pump capacity


1-2/min
