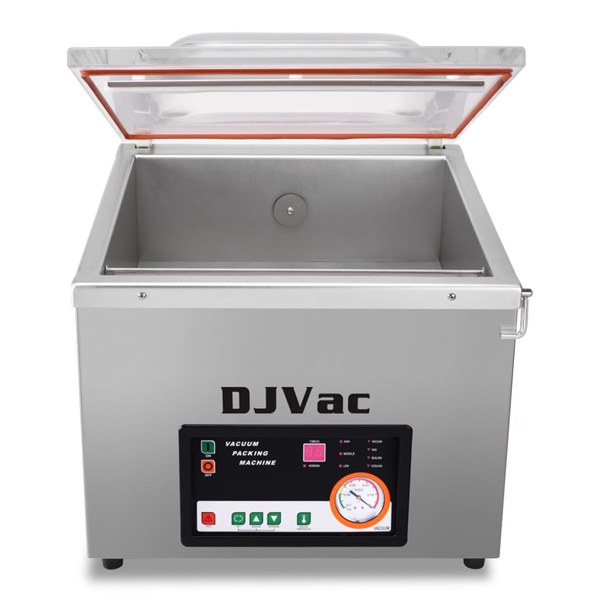

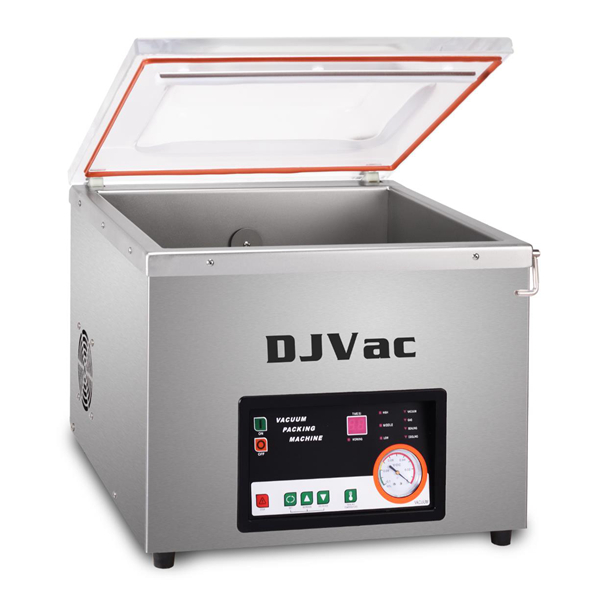

Large Tabletop Large Tabletop Vacuum Machine

The Large table vacuum machine has deep chamber, wider seal bar and longer length. It's maximum tabletop serials to pack huge items.


 Smart Digital Control Panel

 All Transparent Visual Lid

  • Multiple program memories with quick switch button   • Made of High-impact acrylic material
  • Easy and fast to remove and install the panel by hand   • Durable sealing lid gasket by Special “V” sharped design
  • Totally adjustable for customers‘ various demands   • With buckle of lid to smoothly lock and unlock
  • Can manual stop and sealing for packaging of liquids
  • Connect with effortless unusual designed hinges
  • Splash-proof design to adapt many places

 Food-Grade Main Structure

 Robust Sealing System

  • Constructed of high-quality SUS304 stainless steel
  • Design patent for fastener of seal wire for add service life
  • Use advanced laser cutting technology to produce
  • Double-seam is alternative
  • Smooth feeling by meticulous surface treatment
  • Double-seam with cutting-off is alternative
  • Maximum cost-effectiveness by finite element analysis
  • Two sealing bars is alternative
  • Glossy chamber and beautiful brushed shell
  • Plug-in without cables sealing system is alternative

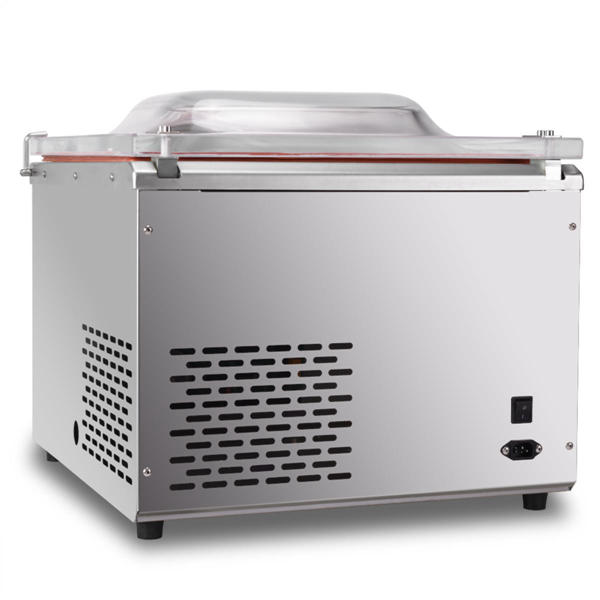

 Reasonable Thermal Design

 Easily Maintaining Design
  • Design patent for thermal holes of fan
  • Simple to open or close the shell
  • Design patent for thermal holes of vacuum pump
  • Clear Oil level viewing window
  • Finger can not be insert into all thermal holes
  • Not difficult to replace the oil of vacuum pump
  • Ensure machine is available after long duration of work
  • Easy to displace wearing parts


 Gas Flush System
 Filling plates
  • Flush protective gas into pack bags
  • Adjust the height of chamber to suit packed items
  • 2 or 3 nozzles in one side to adapt various pack size
  • Decrease the space of chamber to reduce the time of suction
  • With convenient clamp of bag

 Inclined Support

 Mobile Machine Stand
  • Special design for liquids packaging
  • Made of high-quality stainless steel
  • Easy to set up and take away
  • Two compartment to put items or bags
  • Adjustable baffle for different package size
  • The front gate can be remove

  • The back active gate is alternative



Fresh Meat Sausage Sous-Vide Seafood Sauce Pickle

Cereal Vegetable Tea & Herb Money Document Clothing

Bacon Chicken Duck Chop Metal Industrial items

المواصفات الفنية



DZ-390 T DZ-450 A DZ-500 T DZ-500 BT

  Vacuum Pump Capacity





  Seal  Length | S

390mm 440mm 500mm 480mm

  Distance Between Seal Bar | B


415mm 505mm 565mm

  Alignment Of Seal Bar

  Chamber Depth | D / D*1

110/170mm 170/220mm

  Chamber Size


  Chamber Shape

Arch*2 Or Flat
Flat Flat Flat


0.9kW 0.9kW


230V/50Hz 230V/50Hz 230V/50Hz 230V/50Hz

  Net Weight / Gross Weight

65/77kg 64/74kg 87/106kg 90/110kg

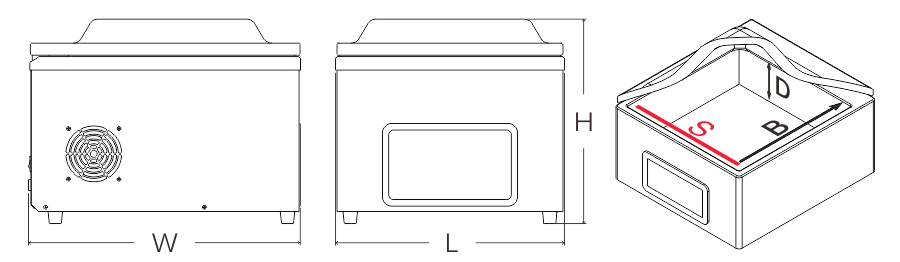

  Dimensions | W x L x H  (mm)

610×470×500 560×520×490
675×590×510 745×570×510

  Shipping Dimensions (mm)

670×530×550 610×570×540
750×660×560 820×640×560

*1 with high DOM-Lid    *2 suitable for liquid or round items    *3 could be customized
