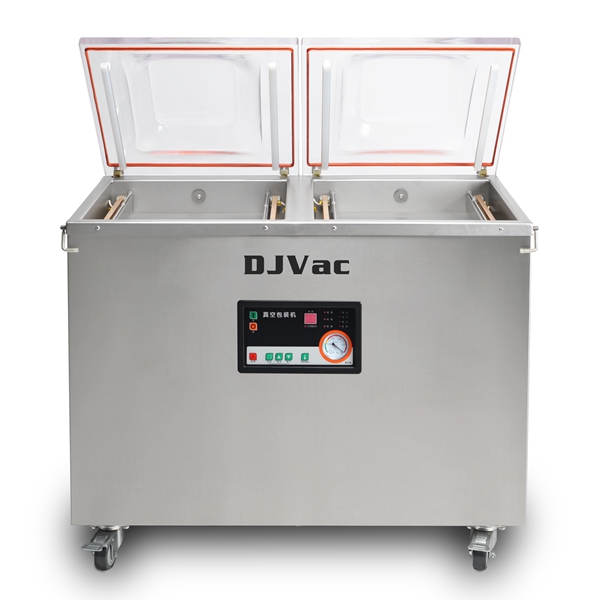

Twins Chamber Twins Chamber Vacuum Machine

When one chamber is working, another take packed items into another chamber. Thus you can save the filling time to make efficiency double






Features:









 Smart Digital Control Panel

 All Transparent Visual Lid

 • Multiple program memories with quick switch button  • Made of High-impact acrylic material
 • Easy and fast to remove and install the panel by hand  • Durable sealing lid gasket by Special “V” sharped design
 • Totally adjustable for customers‘ various demands  • With buckle of lid to smoothly lock and unlock
 • Can manual stop and sealing for packaging of liquids
 • Connect with effortless unusual designed hinges
 • Splash-proof design to adapt many places






 Food-Grade Main Structure


 Robust Sealing System

 • Constructed of high-quality SUS304 stainless steel
 • Design patent for fastener of seal wire for add service life
 • Use advanced laser cutting technology to produce
 • Double-seam is alternative
 • Smooth feeling by meticulous surface treatment
 • Double-seam with cutting-off is alternative
 • Maximum cost-effectiveness by finite element analysis
 • Two sealing bars is alternative
 • Glossy chamber and beautiful brushed shell
 • Plug-in without cables sealing system is alternative





 Reasonable Thermal Design

 Easily Maintaining Design
 • Design patent for thermal holes of fan
 • Simple to open or close the shell
 • Design patent for thermal holes of vacuum pump
 • Clear Oil level viewing window
 • Finger can not be insert into all thermal holes
 • Not difficult to replace the oil of vacuum pump
 • Ensure machine is available after long duration of work
 • Easy to displace wearing parts






Options:









 Gas Flush System
 Filling plates
 • Flush protective gas into pack bags
 • Adjust the height of chamber to suit packed items
 • 2 or 3 nozzles in one side to adapt various pack size
 • Decrease the space of chamber to reduce the time of suction
 • With convenient clamp of bag










 Inclined Support

 Pouching Assistance
 • Special design for liquids packaging
 • assist items to be pouched into bag smoothly
 • Easy to set up and take away

 • Adjustable baffle for different package size























Examples:















Fresh Meat Sausage Sous-Vide Seafood Sauce Pickle






Cereal Vegetable Tea & Herb Money Document Clothing






Bacon Chicken Duck Chop Metal Industrial items

المواصفات الفنية

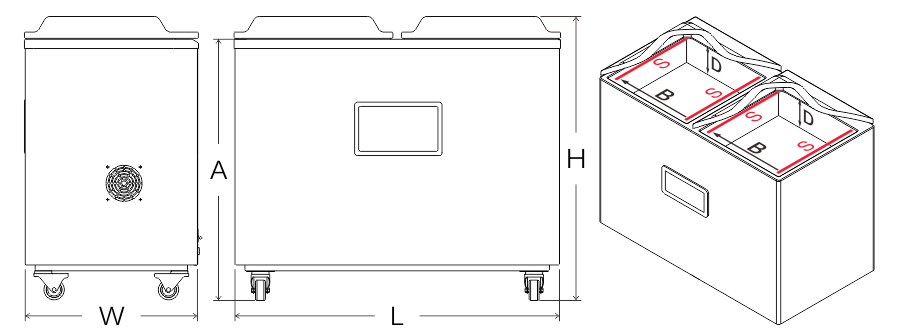

  Model

DZ-400 2SF



  Vacuum Pump Capacity

20×2 m3/h



  Seal  Length | S

430mm×2



  Distance Between Seal Bar | B

390mm



  Alignment Of Seal Bar







  Chamber Depth | D / D*1

90/140mm



  Chamber Size

460×450mm



  Distance From Floor To Platform | A

850mm



  Power

1.8kW



  Connection*2

230V/50Hz



  Net Weight / Gross Weight

153/191kg



  Dimensions | W x L x H  (mm)

560×1050×925



  Shipping Dimensions (mm) 630×1140×1105



  Circle Time 2-3/min



*1 with high DOM-Lid     *2 could be customized
