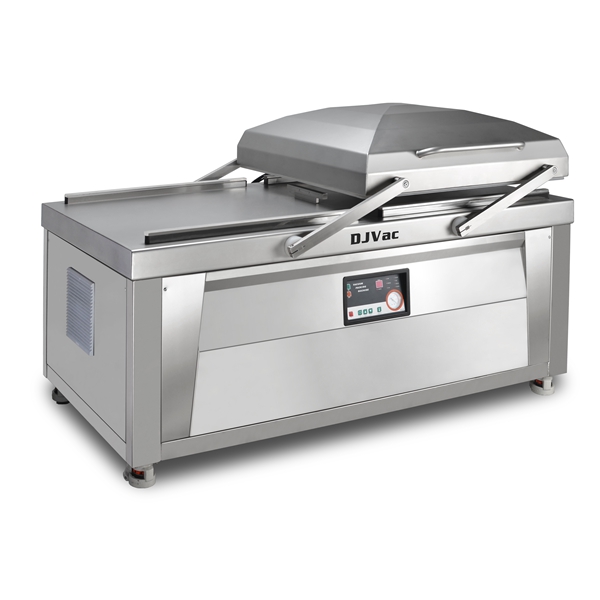

PNEU Double Chamber Pneumatic Double Chamber Vacuum Machine






Options:









 Gas Flush System
 Filling plates
 • Flush protective gas into pack bags
 • Adjust the height of chamber to suit packed items
 • 2 or 3 nozzles in one side to adapt various pack size
 • Decrease the space of chamber to reduce the time of suction
 • With convenient clamp of bag























Examples:















Fresh Meat Sausage Sous-Vide Seafood Sauce Pickle






Cereal Vegetable Tea & Herb Money Document Clothing






Bacon Chicken Duck Chop Metal Industrial items

المواصفات الفنية


















DZ-800 2S DZ-950 2S



Vacuum Pump Capacity *1

100/160 m3/h

160/200 m3/h



Seal  Length | S

800mm×2 950mm×2



Distance Between Seal Bar | B

770mm 685mm



Alignment Of Seal Bar








Chamber Depth | D

280mm
190mm



Chamber Size

960×930mm
1110×840mm



Distance From Floor To Platform | A

840mm 840mm



Power*2

4.0kW
5.5kW



Connection*3

380V/50Hz,3Phase
380V/50Hz,3Phase



Net Weight / Gross Weight *4

655/725kg 551/662kg



Dimensions | W x L x H  (mm)

1040×1995×1130
945×2250×1040



Shipping Dimensions (mm) 1110×2065×1310 1015×2320×1220



Need Compressed Air




Circle Time
1-2/min 1-2/min







*1 pump could be alternative and the bold capacity is recommended          *2  in condition of recommended vacuum pump capacity

*3 could be customized      *4  in condition of recommended vacuum pump capacity
