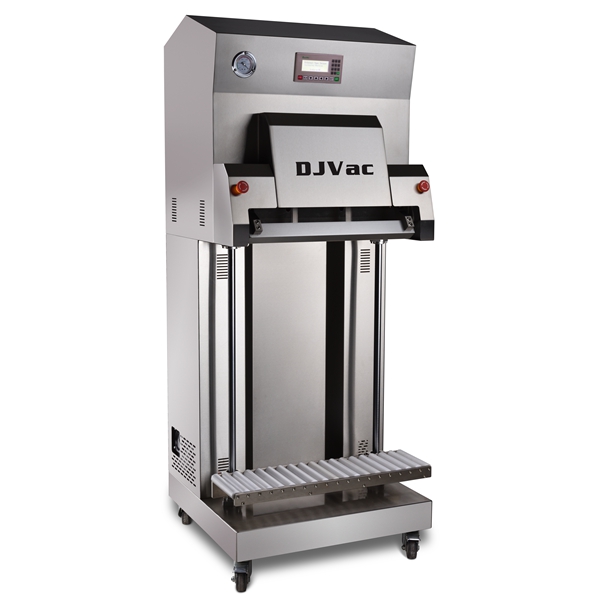

Vertical External Vertical External Vacuum Machine


Options:









 Gas Flush System
 Packaging Mould
 • Flush protective gas into pack bags
 • Easy to put and take items from mould
 • 2 or 3 nozzles in one side to adapt various pack size

 • With convenient clamp of bag



























Examples:















Fresh Meat Sausage Sous-Vide Seafood Sauce Pickle






Cereal Vegetable Tea & Herb Money Document Clothing






Bacon Chicken Duck Chop Metal Industrial items

المواصفات الفنية




















DZQ-600 L DZQ-700 L DZQ-800 L DZQ-900 L DZQ-1000 L



  Vacuum Pump Capacity

20m3/h

20m3/h

20m3/h

20m3/h

20m3/h

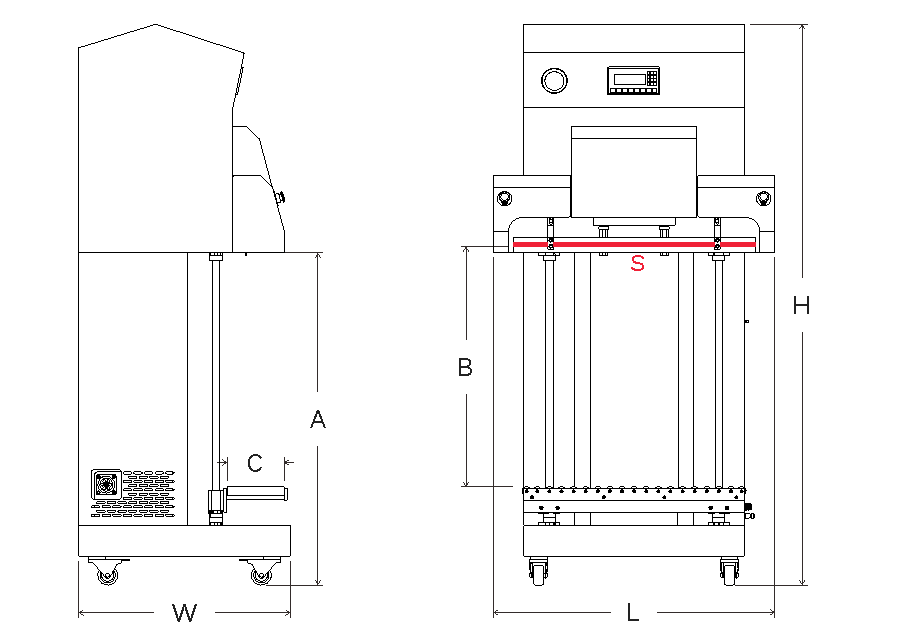

  Seal  Length | S

600mm 700mm 800mm×2 900mm 1000mm



  Distance Between Seal Bar | B

790mm

790mm 790mm 790mm 790mm



  Distance From Floor To Platform | A

1110mm
1110mm
1110mm
1110mm
1110mm



  Object Stage Length | C

190mm 190mm
190mm
190mm
190mm



  Power

0.9kW
0.9kW
0.9kW
0.9kW
0.9kW



  Connection*1

230V/50Hz
230V/50Hz
230V/50Hz
230V/50Hz
230V/50Hz



  Net Weight / Gross Weight

156/202kg
162/214kg
168/226kg
174/238kg
180/250kg



  Dimensions | W x L x H  (mm)

680×730×1865
680×750×1865
680×900×1865
680×1000×1865
680×1100×1865



  Shipping Dimensions (mm)
750×800×2045
750×820×2045
750×970×2045
750×1070×2045
750×1170×2045



  Need Compressed Air






  Circle Time 1-2/min 1-2/min 1-2/min 1-2/min 1-2/min










  *1 could be customized
