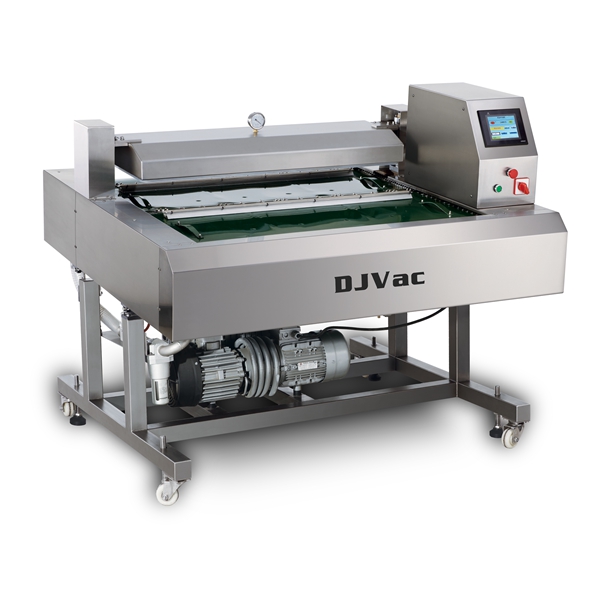

Model	DZ-1000 QF
Vacuum Pump Capacity *1	100/200 m3/h
Seal  Length | S	1000mm
Distance Between Seal Bar | B	330/150/270 mm
Alignment Of Seal Bar*2
Max. Product Height*3	80mm
Chamber Size	425×1080×H130 mm

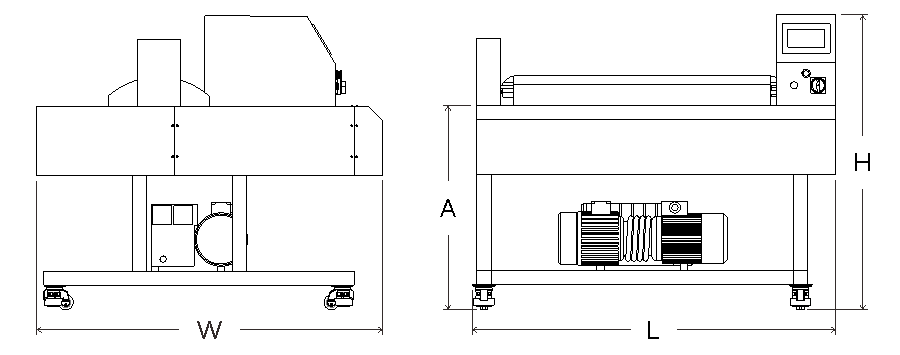

Distance From Floor To Platform | A	850mm
Power*4	2.2kW
Connection*5	380V/50Hz,3Phase
Need Compressed Air	√
Net Weight / Gross Weight *6	450/560kg
Machine Size | W x L x H  (mm)	1460×1510×1240
Shipping Dimensions (mm)	1530×1580×1420
Circle Time	2-3/min

  *1  pump could be alternative and the red capacity is recommended          *2  could be alternative              *3  could be customized

  *4  in condition of recommended vacuum pump capacity          *5  could be customized           *6   in condition of recommended vacuum pump capacity
