Options：
|
|
|
|
|
|
|
|
|
|
|
Gas Flush System |
 |
Package Mould |
|
• Flush protective gas into pack bags |
• Easy to put and take items from mould |
||
|
• 2 or 3 nozzles in one side to adapt various pack size |
|
||
|
• With convenient clamp of bag |
|
||
|
|
|
||
|
|
|
||
|
|
|
|
|
|
|
|
|
Examples： |
|
|
|
|
|
|
 |
 |
|
|
Cereal |
Sauce | Pickle |
|
|
 |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|

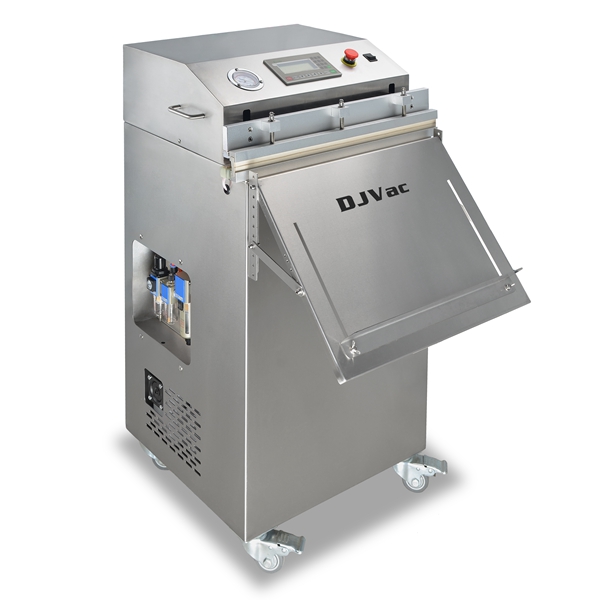

VS-600 |
|
|
Vacuum Pump Capacity |
20m3/h |
|
|

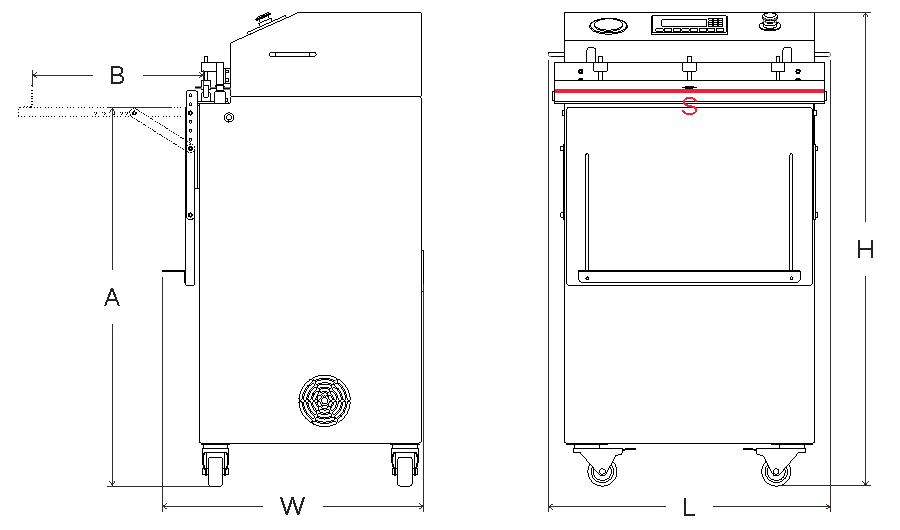

Seal Length | S |
600mm |
|
|
Distance Between Seal Bar | B |
380mm |
|
|
Distance From Floor To Platform | A |
1220mm |
|
|
Power |
0.9kW |
|
|
Connection*1 |
230V/50Hz |
|
| Net Weight / Gross Weight | 99/135kg |
|
|
Dimensions | W x L x H (mm) |
590×640×1070mm |
|
|
Shipping Dimensions (mm) |
660×710×1250mm |
|
| Circle Time | 1-2/min |
|
|
|
|
|
*1 could be customized
20m3/h Vacuum Pump
600~1000mm Seal Bar
2~3/min Circle Time
0.6~0.88m2 Counter Space
