Options：
|
|
|
|
|
|
|
|
|
 |
Gas Flush System |
 |
Package Mould |
|
• Flush protective gas into pack bags |
• Easy to put and take items from mould |
||
|
• 2 or 3 nozzles in one side to adapt various pack size |
|
||
|
• With convenient clamp of bag |
|
||
|
|
|
||
|
|
|
||
|
|
|
|
|
|
|
|
|
Examples： |
|
|
|
|
|
|
 |
 |
|
|
Cereal |
Sauce | Pickle |
|
|
 |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|

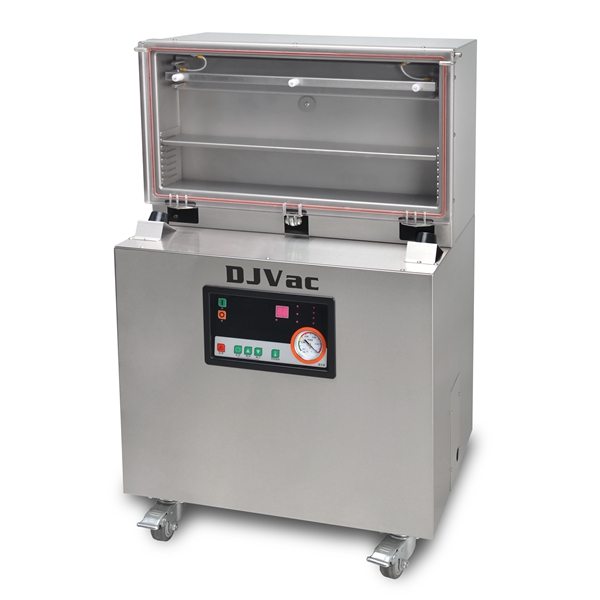

DZ-600 L |
|
|
Vacuum Pump Capacity |
20 m3/h |
|
|

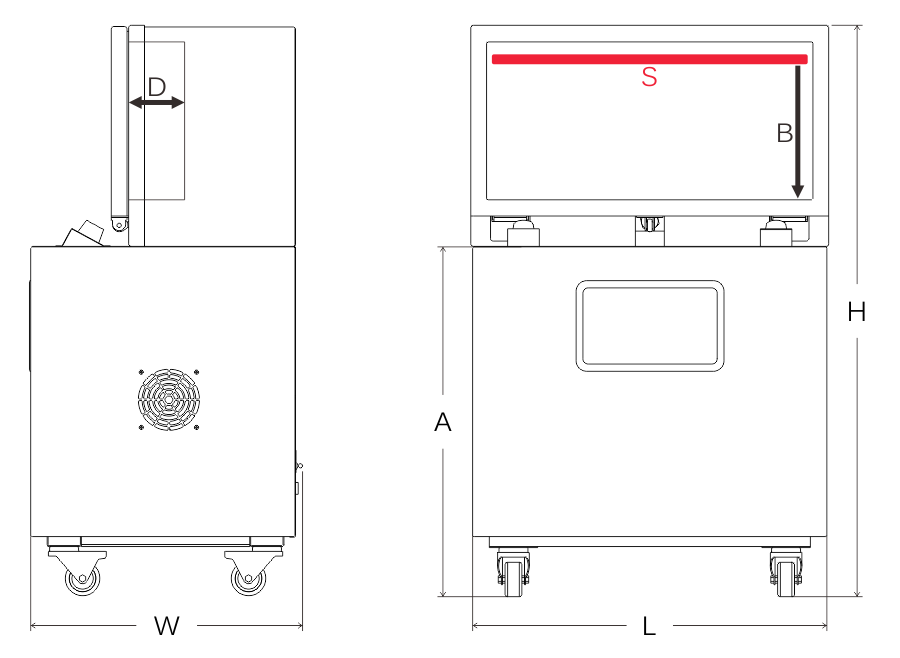

Seal Length | S |
600mm |
|
|
Distance Between Seal Bar | B |
250mm |
|
|
Chamber Depth | D |
100mm |
|
|
Chamber Size |
620×300mm |
|
|
Distance From Floor To Platform | A |
670mm |
|
|
Power |
0.9kW |
|
|
Connection*2 |
230V/50Hz |
|
|
Net Weight / Gross Weight |
81/110kg |
|
|
Dimensions | W x L x H (mm) |
505×680×1090 |
|
| Shipping Dimensions (mm) |
575×750×1280 |
|
| Circle Time | 1-2/min |
|
|
|
|
|
*1 with high DOM-Lid *2 could be customized
20×2~45m3/h Vacuum Pump
500~630mm Seal Bar
1~2/min Circle Time
0.45~0.9m2 Counter Space
45m3/h Vacuum Pump
650mm Seal Bar
1~2min Circle Time
0.93m2 Counter Space
