Dip Shrink Tank Hot Water Dip Shrink Tank


Technical Specification

















  Model

HW-12 HWD-12



  Max Produv Dimention

                                      600×350×330mm



  Immersion Depth

                                       350mm



  Immersion Platform Size

                                      600×350mm



  Immersion PlatforWeight Capacity

                                     ≤15kg



  Distance From Floor To Platform | A

                                     865mm



  Volume of Water

                                     100 Liters



  Power Comsuption

                                     12kW



  Connection*1

                                     380V/50Hz,3Phase



  Cycle time

                                      8-12/Min



  Need Compressed Air

X



  Net Weight / Gross Weight

95/136kg 105/150kg

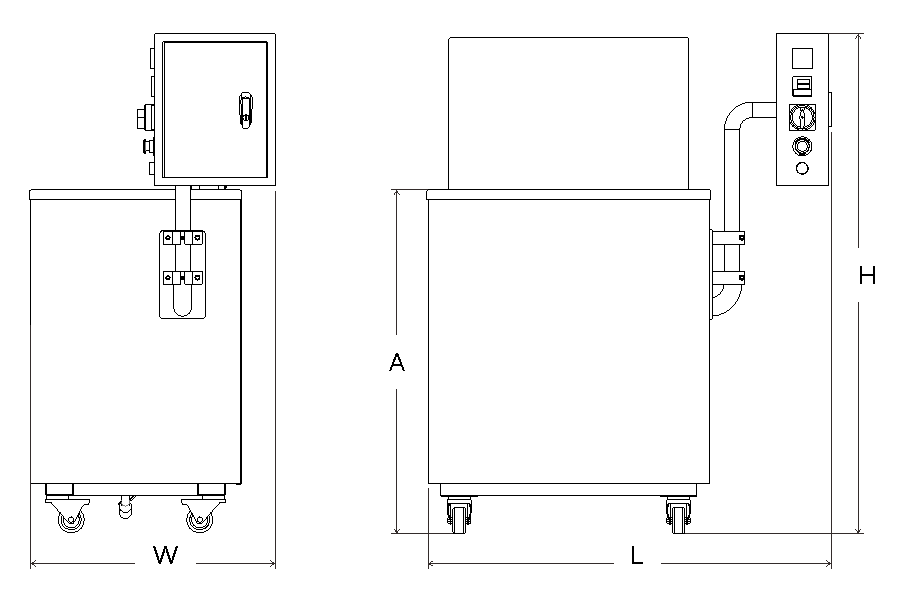

  Machine Size | W x L x H  (mm)
615×1005×1255mm 640×1005×1255mm



  Shipping Dimensions (mm)*2 685×860×1435mm
710×860×1435mm







  *1 could be customized      *2  the electricity box can be raroted to reduce packaging size
