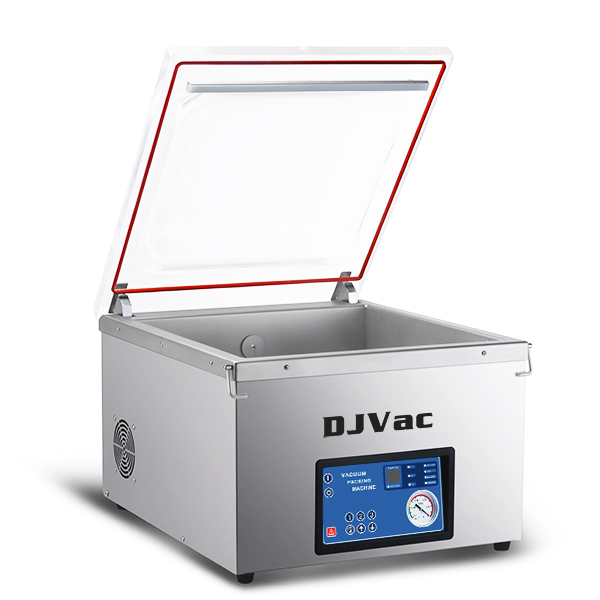

Large Tabletop Large Tabletop Vacuum Machine

The Large table vacuum machine has deep chamber, wider seal bar and longer length. It's maximum tabletop serials to pack huge items.


Features:



Smart Digital Control Panel

• Quick multi programs switch

• Panel mask Support customization

• Support manual sealing

• Accurate parameter control


All Transparent Visual Lid

• Made of high-impact acrylic material

• Effortless designed hinges

• Durable sealing lid gasket by Special “V” sharped design






Food-Grade Main Structure

• Constructed of high-quality SUS304 stainless steel

• Use Switzerland laser cutting device to produce

• Smooth feeling by meticulous surface treatment

• Strong structure by finite element analysis

• Glossy chamber and beautiful brushed shell


Robust Sealing System

• Design patent for fastener of seal wire for add service life

• Double-seam is alternative

• Double-seam with cutting-off is alternative

• Two sealing bars is alternative

• Plug-in without cables sealing system is alternative

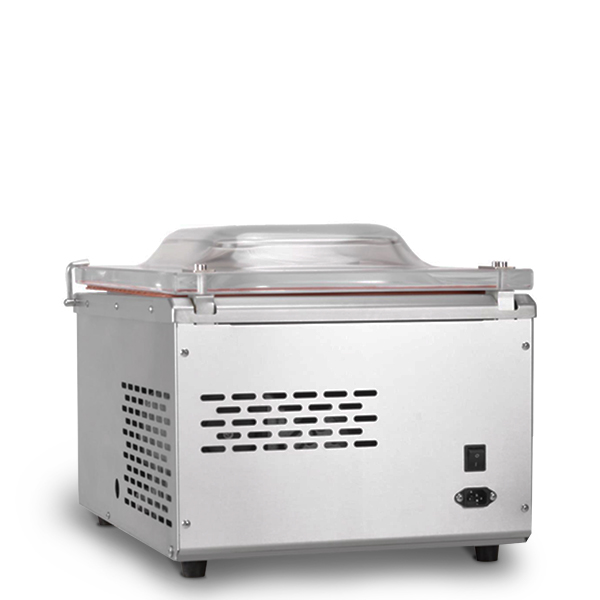

Efficient Heat Dissipation

• Powerful thermal fan

• As soon as turn off machinefan will close

• Patent design for thermal holes

• Availble eight consecutive hours working


Easily Maintaining Design

• Simple to open or close the shell

• Clear oil level viewing window

• Not difficult to replace the oil of vacuum pump

• Easy to displace wearing parts


Options:





Gas Flush System

• Flush protective gas into pack bags

• 2 or 3 nozzles in one side to adapt various pack size

• With convenient clamp of bag


Filling plates

• Adjust the height of chamber to suit packed items

• Decrease the space of chamber to reduce the time of suction






Inclined Support

• Special design for liquids packaging

• Easy to set up and take away

• Adjustable baffle for different package size


Mobile Machine Stand

• Made of high-quality stainless steel

• Two compartment to put items or bags

• The front gate can be remove

• The back active gate is  alternative






Examples:
















Fresh Meat Sausage Sous-Vide Seafood Sauce Pickle






Cereal Vegetable Tea & Herb Money Document Clothing






Bacon Chicken Duck Chop Metal Industrial items



Technical Specification









  Model

DZ-390 T DZ-450 A DZ-500 T DZ-500 BT



  Vacuum Pump Capacity

20m3/h

20m3/h

20m3/h

20m3/h



  Seal  Length | S

390mm 440mm 500mm 480mm



  Distance Between Seal Bar | B

465mm

415mm 505mm 565mm



  Alignment Of Seal Bar








  Chamber Depth | D / D*1

110/170mm 170/220mm
150/210mm
90/170mm



  Chamber Size

410×500mm
460×450mm
520×540mm
500×600mm



  Chamber Shape

Arch*2 Or Flat
Flat Flat Flat



  Power

0.75kW
0.75kW 0.75kW
0.75kW



  Connection*3

230V/50Hz 230V/50Hz 230V/50Hz 230V/50Hz



  Net Weight / Gross Weight

65/77kg 64/74kg 87/106kg 90/110kg



  Dimensions | W x L x H  (mm)

610×470×500 560×520×490
675×590×510 745×570×510



  Shipping Dimensions (mm)

670×530×550 610×570×540
750×660×560 820×640×560



  Circle Time 1-2/Min 1-2/Min
1-2/Min
1-2/Min









*1 with high DOM-Lid    *2 suitable for liquid or round items    *3 could be customized
