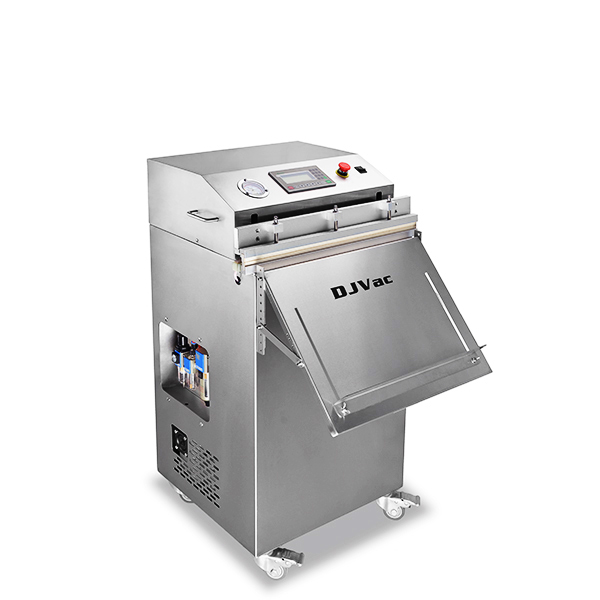

Horizontal External Horizontal External Vacuum Machine


Features:



Text Display Control Panel

• Quick multi programs switch

• Accurate parameter control

• Complicated programs control



Adjustable Board

• Can easily adjust thinclination of the board






Food-Grade Main Structure

• Constructed of high-quality SUS304 stainless steel

• Use Switzerland laser cutting device to produce

• Smooth feeling by meticulous surface treatment

• Strong structure by finite element analysis

• Glossy chamber and beautiful brushed shell


Robust Sealing System

• Design patent for fastener of seal wire for add service life






Efficient Heat Dissipation

• Powerful thermal fan

• As soon as turn off machinefan will close

• Patent design for thermal holes

• Availble eight consecutive hours working



Easily Maintaining Design

• Simple to open or close the shell

• Clear oil level viewing window

• Not difficult to replace the oil of vacuum pump

• Easy to displace wearing parts


Options:





Gas Flush System

• Flush protective gas into pack bags

• 2 or 3 nozzles in one side to adapt various pack size

• With convenient clamp of bag


Package Mould

• Easy to put and take items from mould







Pouching Assistance

 • assist items to be pouched into bag smoothly













Examples:
















Fresh Meat Sausage Sous-Vide Seafood Sauce Pickle






Cereal Vegetable Tea & Herb Money Document Clothing






Bacon Chicken Duck Chop Metal Industrial items


Technical Specification








VS-600



  Vacuum Pump Capacity

20m3/h



  Seal  Length | S

600mm



  Distance Between Seal Bar | B

380mm



  Distance From Floor To Platform | A

1220mm



  Power

0.9kW



  Connection*1

230V/50Hz



  Net Weight / Gross Weight 99/135kg



  Dimensions | W x L x H  (mm)

590×640×1070mm



  Shipping Dimensions (mm)

660×710×1250mm



  Circle Time 1-2/min






  *1 could be customized

Related products

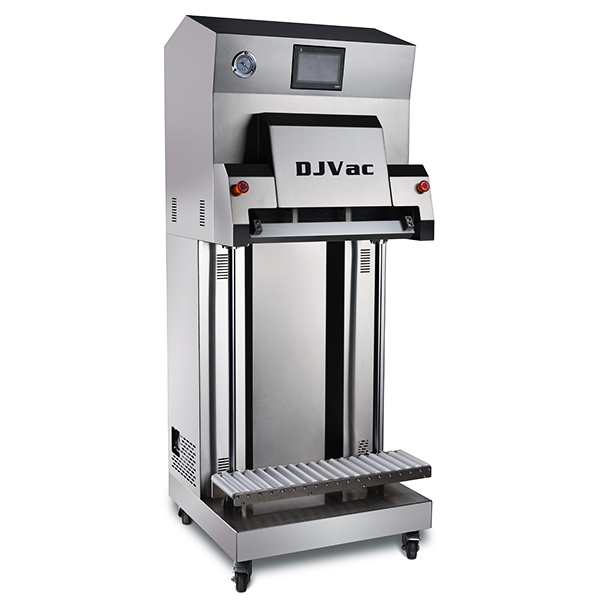

Vertical External
