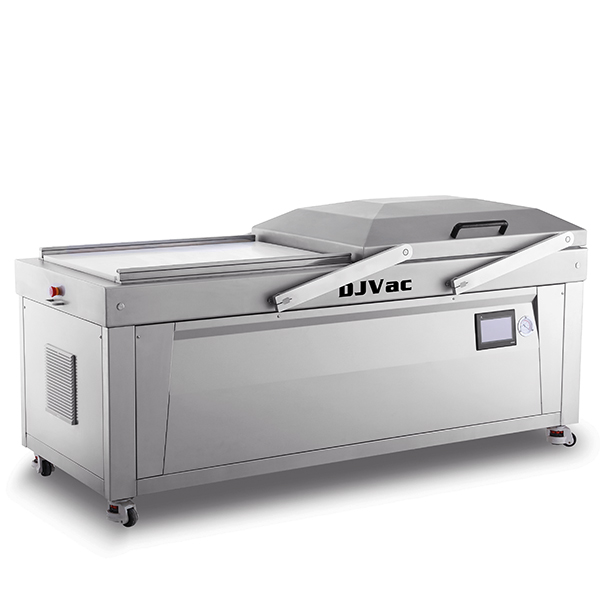

PNEU Double Chamber Pneumatic Double Chamber Vacuum Machine

Pneumatic Double Chamber Vacuum Packaging Machines series are equipped with two chambers While products are being packed in the first chamber, the second chamber can be unloaded and loaded again. This makes the packaging procedure especially efficient. And the machine offer automatic and semi-automatic operation mode to switch.


Touch Control Panel Interface

• Quick multi programs switch

• Accurate parameter control

• Complicated programs control

Heavy Duty Adjustable Caster

• The leveling retractable casters cacn fix the machine

• Can adjust the levelness of machine in inclined floor

• Wear-resisting and slince universal wheels

Food-Grade Main Structure

• Constructed of high-quality SUS304 stainless steel

• Use Switzerland laser cutting device to produce

• Smooth feeling by meticulous surface treatment

• Strong structure by finite element analysis

• Glossy chamber and beautiful brushed shell

Robust Sealing System

• Design patent for fastener of seal wire for add service life

• Double-seam is alternative

• Double-seam with cutting-off is alternative

• Two sealing bars is alternative

• Plug-in without cables sealing system is alternative

Hermetic Electrical Box Design

• Simple to open or close the box

• Dustproof and splash-proof design

• Clear distribution of electricals make maintaining easily

Easily Maintaining Design

• Simple to open or close the shell

• Clear oil level viewing window

• Not difficult to replace the oil of vacuum pump

• Easy to displace wearing parts


Gas Flush System

• Flush protective gas into pack bags

• 2 or 3 nozzles in one side to adapt various pack size

• With convenient clamp of bag

Filling plates

• Adjust the height of chamber to suit packed items

• Decrease the space of chamber to reduce the time of suction

Pouching Assistance

 • assist items to be pouched into bag smoothly


Fresh Meat Sausage Sous-Vide Seafood Sauce Pickle

Cereal Vegetable Tea & Herb Money Document Clothing

Bacon Chicken Duck Chop Metal Industrial items

Technical Specification


DZ-800 2SQ

DZ-950 2SQ

Vacuum Pump Capacity *1

160/200 m3/h

160/200 m3/h

Seal  Length | S

800mm×2 950mm×2

Distance Between Seal Bar | B

770mm 685mm

Alignment Of Seal Bar

Chamber Depth | D


Chamber Size


Distance From Floor To Platform | A

840mm 840mm





Net Weight / Gross Weight *4

655/725kg 551/662kg

Dimensions | W x L x H  (mm)


Shipping Dimensions (mm) 1110×2065×1310 1015×2320×1220

Need Compressed Air

 Circle Time
1-2/min 1-2/min

*1 pump could be alternative and the bold capacity is recommended          *2  in condition of recommended vacuum pump capacity

*3 could be customized      *4  in condition of recommended vacuum pump capacity
