Industrial Floor Type Industrial Freestanding Vacuum Machine


Features:



Smart Digital Control Panel

• Quick multi programs switch

• Panel mask Support customization

• Support manual sealing

• Accurate parameter control


Heavy Duty Adjustable Caster

The leveling retractable casters cacn fix the machine

• Can adjust the levelness of machine in inclined floor

• Wear-resisting and slince universal wheels






Food-Grade Main Structure

• Constructed of high-quality SUS304 stainless steel

• Use Switzerland laser cutting device to produce

• Smooth feeling by meticulous surface treatment

• Strong structure by finite element analysis

• Glossy chamber and beautiful brushed shell


Robust Sealing System

• Design patent for fastener of seal wire for add service life

• Double-seam is alternative

• Double-seam with cutting-off is alternative

• Two sealing bars is alternative

• Plug-in without cables sealing system is alternative






Hermetic Electrical Box Design

• Simple to open or close the box

• Dustproof and splash-proof design

• Clear distribution of electricals make maintaining easily


Easily Maintaining Design

• Simple to open or close the shell

• Clear oil level viewing window

• Not difficult to replace the oil of vacuum pump

• Easy to displace wearing parts


Options:

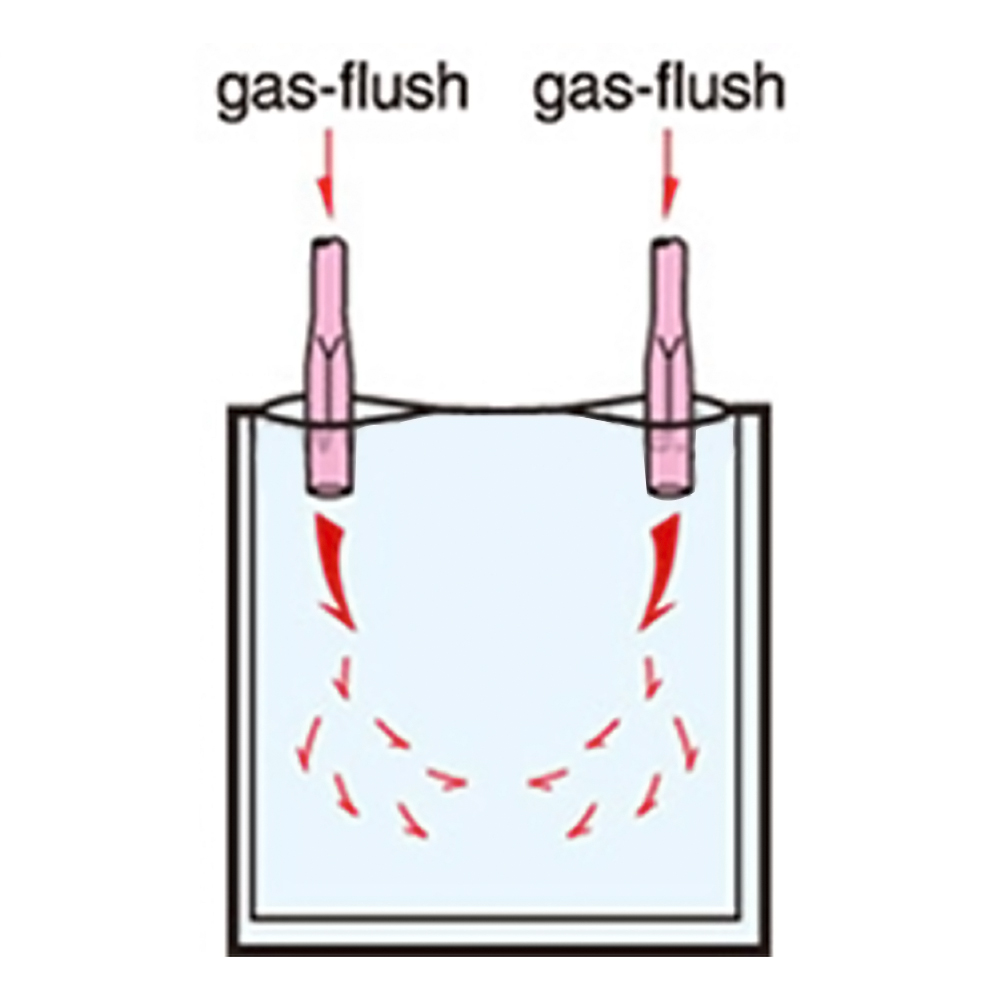

Gas Flush System

• Flush protective gas into pack bags

• 2 or 3 nozzles in one side to adapt various pack size

• With convenient clamp of bag


Filling plates

• Adjust the height of chamber to suit packed items

• Decrease the space of chamber to reduce the time of suction







Pouching Assistance

 • assist items to be pouched into bag smoothly













Examples:
















Fresh Meat Sausage Sous-Vide Seafood Sauce Pickle






Cereal Vegetable Tea & Herb Money Document Clothing






Bacon Chicken Duck Chop Metal Industrial items
Technical Specification










DZ-800 DZ-900 DZ-1000



  Vacuum Pump Capacity

100 m3/h

100 m3/h

100 m3/h



  Seal  Length | S1/S2

800/480mm 900/540mm 1000/600mm



  Distance Between Seal Bar | B1/B2

520/840mm

580/940mm 640/1040mm



  Alignment Of Seal Bar









  Chamber Depth | D

200mm 200mm
200mm



  Chamber Size

940×620mm
1040×680mm
1140×740mm



  Distance From Floor To Platform | A

800mm 800mm 800mm



  Power

2.2kW
2.2kW
2.2kW



  Connection*1

380V/50Hz,3Phase
380V/50Hz,3Phase
380V/50Hz,3Phase



  Net Weight / Gross Weight

250/285kg 280/335kg
330/400kg



  Dimensions | W x L x H  (mm)

715×950×1000
775×1050×1000
835×1150×1000



  Shipping Dimensions (mm) 785×1020×1180 845×1120×1180 905×1220×1180



 Circle Time
1-2/min 1-2/min
1-2/min








  *1 could be customized
