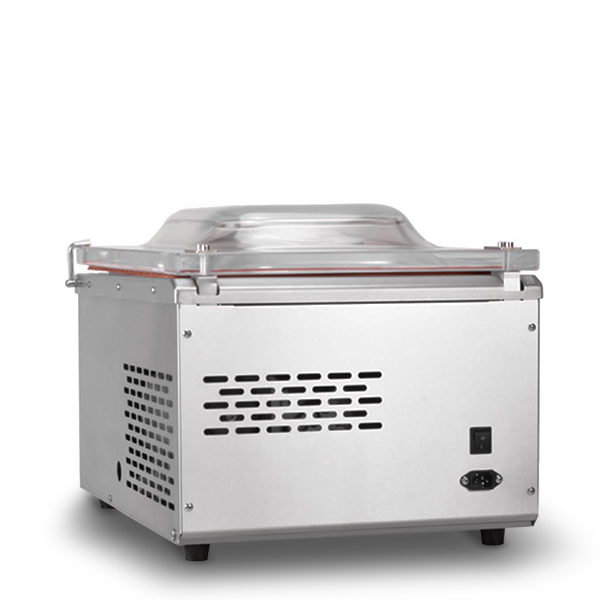

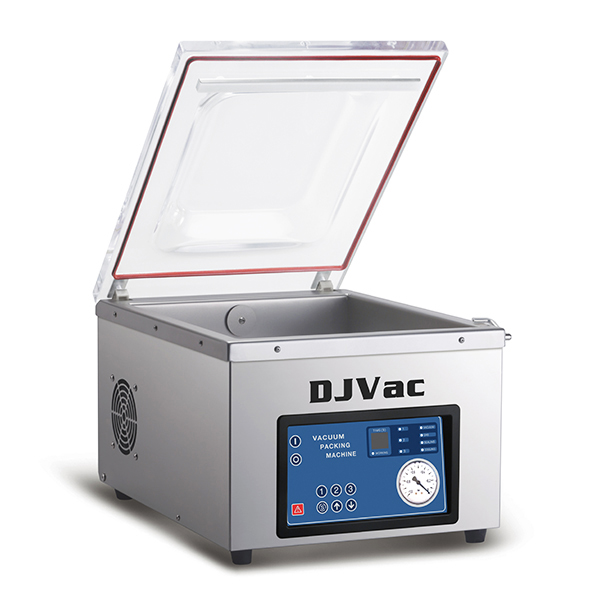

Midsize Tabletop Midsize Tabletop Vacuum Machine

If you want a more efficient vacuum machine with limited budget, the midsize tabletop serials will be suitable for you.


Features:



Smart Digital Control Panel

• Quick multi programs switch

• Panel mask Support customization

• Support manual sealing

• Accurate parameter control


All Transparent Visual Lid

• Made of high-impact acrylic material

• Effortless designed hinges

• Durable sealing lid gasket by Special “V” sharped design






Food-Grade Main Structure

• Constructed of high-quality SUS304 stainless steel

• Use Switzerland laser cutting device to produce

• Smooth feeling by meticulous surface treatment

• Strong structure by finite element analysis

• Glossy chamber and beautiful brushed shell


Robust Sealing System

• Design patent for fastener of seal wire for add service life

• Double-seam is alternative

• Double-seam with cutting-off is alternative

• Two sealing bars is alternative

• Plug-in without cables sealing system is alternative






Efficient Heat Dissipation

• Powerful thermal fan

• As soon as turn off machine, fan will close

• Patent design for thermal holes

Availble eight consecutive hours working


Easily Maintaining Design

• Simple to open or close the shell

• Clear oil level viewing window

• Not difficult to replace the oil of vacuum pump

• Easy to displace wearing parts


Options:





Gas Flush System

• Flush protective gas into pack bags

• 2 or 3 nozzles in one side to adapt various pack size

• With convenient clamp of bag


Filling plates

• Adjust the height of chamber to suit packed items

• Decrease the space of chamber to reduce the time of suction






Inclined Support

• Special design for liquids packaging

• Easy to set up and take away

• Adjustable baffle for different package size


Mobile Machine Stand

• Made of high-quality stainless steel

Two compartment to put items or bags

• The front gate can be remove

• The back active gate is  alternative











Examples:
















Fresh Meat Sausage Sous-Vide Seafood Sauce Pickle






Cereal Vegetable Tea & Herb Money Document Clot



Technical Specification











  Model

DZ-350 M DZ-350 MS DZ-430 PT/2 DZ-400 F DZ-400 2F DZ-400 G



  Vacuum Pump Capacity

20m3/h

20m3/h 20m3/h 20m3/h 20m3/h 20m3/h



  Seal Length | S

350mm

350mm

430mm×2

400mm

420mm×2

400mm



  Distance Between Seal Bar | B 415mm 415mm 300mm 405mm 350mm 405mm



  Alignment Of Seal Bar











  Chamber Depth | D / D*1

70/120mm

170/220mm

50/100mm

75/125mm

75/125mm

150/200mm



  Chamber Size

370×450mm 370×450mm 370×450mm 420×440mm 420×440mm 420×440mm



  Power

0.75kW 0.75kW 0.75kW 0.75kW 0.75kW 0.75kW



  Connection*2

230V/50Hz
230V/50Hz
230V/50Hz
230V/50Hz
230V/50Hz
230V/50Hz



  Net Weight / Gross Weight

54/64kg 58/68kg 57/68kg 57/67kg 58/68kg 62/72kg



  Dimensions | W x L x H (mm)

425×560×400 425×560×490 425×560×400 475×555×410 475×555×410
475×555×485



  Shipping dimensions (mm)

490×610×435 490×610×530 490×610×435 530×610×460 530×610×460
530×610×540



  Circle Time
1-2/min 1-2/min
1-2/min
1-2/min
1-2/min
1-2/min











*1 with high DOM-Lid    *2 could be customized
