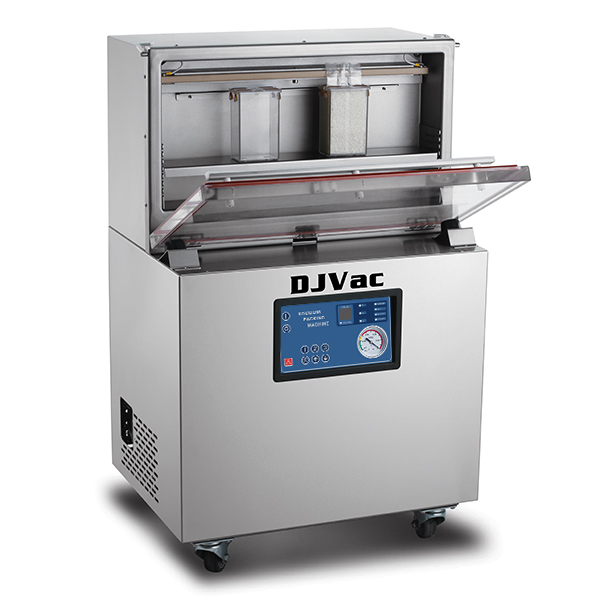

Rectagle Vertical Rectagle Vertical Vacuum Machine

The Vertical type vacuum packaging machine is specially designed for packing of vertical contents. Its intended for the vacuum packing of the inner bag in the drum. Contents are put into the vacuum bag in the drum(or a container in other shape) and then placed into the vacuum chamber for packing along with the bag and drum.


Features:



Smart Digital Control Panel

• Quick multi programs switch

• Panel mask Support customization

• Support manual sealing

• Accurate parameter control


Adjustable Board

• Can easily adjust the height of support board






Food-Grade Main Structure

• Constructed of high-quality SUS304 stainless steel

• Use Switzerland laser cutting device to produce

• Smooth feeling by meticulous surface treatment

• Strong structure by finite element analysis

• Glossy chamber and beautiful brushed shell


Robust Sealing System

• Design patent for fastener of seal wire for add service life

• Double-seam is alternative

• Double-seam with cutting-off is alternative

• Plug-in without cables sealing system is alternative






Efficient Heat Dissipation

• Powerful thermal fan

• As soon as turn off machinefan will close

• Patent design for thermal holes

• Availble eight consecutive hours working



Easily Maintaining Design

• Simple to open or close the shell

• Clear oil level viewing window

• Not difficult to replace the oil of vacuum pump

• Easy to displace wearing parts


Options:





Gas Flush System

• Flush protective gas into pack bags

• 2 or 3 nozzles in one side to adapt various pack size

• With convenient clamp of bag


Package Mould

• Easy to put and take items from mould







Pouching Assistance

 • assist items to be pouched into bag smoothly













Examples:
















Fresh Meat Sausage Sous-Vide Seafood Sauce Pickle






Cereal Vegetable Tea & Herb Money Document Clothing






Bacon Chicken Duck Chop Metal Industrial items
Technical Specification








DZ-600 L



  Vacuum Pump Capacity

20 m3/h



  Seal  Length | S

600mm



  Distance Between Seal Bar | B

250mm



  Chamber Depth | D

100mm



  Chamber Size

620×300mm



  Distance From Floor To Platform | A

670mm



  Power

0.9kW



  Connection*2

230V/50Hz



  Net Weight / Gross Weight

81/110kg



  Dimensions | W x L x H  (mm)

505×680×1090



  Shipping Dimensions (mm) 575×750×1280



  Circle Time 1-2/min






  *1 with high DOM-Lid     *2 could be customized
