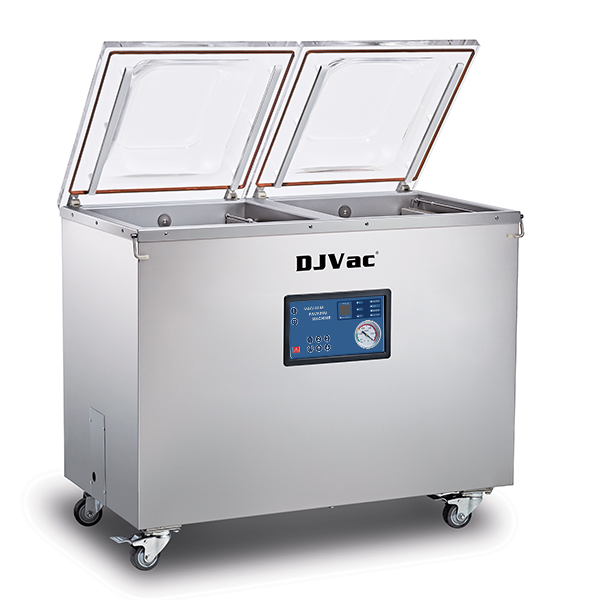

Twins Chamber Twins Chamber Vacuum Machine

When one chamber is working, another take packed items into another chamber. Thus you can save the filling time to make efficiency double.


Features:



Smart Digital Control Panel

• Quick multi programs switch

• Panel mask Support customization

• Support manual sealing

• Accurate parameter control


All Transparent Visual Lid

• Made of high-impact acrylic material

• Effortless designed hinges

• Durable sealing lid gasket by Special “V” sharped design






Food-Grade Main Structure

• Constructed of high-quality SUS304 stainless steel

• Use Switzerland laser cutting device to produce

• Smooth feeling by meticulous surface treatment

• Strong structure by finite element analysis

• Glossy chamber and beautiful brushed shell


Robust Sealing System

• Design patent for fastener of seal wire for add service life

• Double-seam is alternative

• Double-seam with cutting-off is alternative

• Two sealing bars is alternative

• Plug-in without cables sealing system is alternative






Efficient Heat Dissipation

• Powerful thermal fan

• As soon as turn off machinefan will close

• Patent design for thermal holes

• Availble eight consecutive hours working


Easily Maintaining Design

• Simple to open or close the shell

• Clear oil level viewing window

• Not difficult to replace the oil of vacuum pump

• Easy to displace wearing parts


Options:





Gas Flush System

• Flush protective gas into pack bags

• 2 or 3 nozzles in one side to adapt various pack size

• With convenient clamp of bag


Filling plates

• Adjust the height of chamber to suit packed items

• Decrease the space of chamber to reduce the time of suction






Inclined Support

• Special design for liquids packaging

• Easy to set up and take away

• Adjustable baffle for different package size


Pouching Assistance

 • assist items to be pouched into bag smoothly










Examples:
















Fresh Meat Sausage Sous-Vide Seafood Sauce Pickle






Cereal Vegetable Tea & Herb Money Document Clothing






Bacon Chicken Duck Chop Metal Industrial items



Technical Specification







  Model

DZ-400 2S



  Vacuum Pump Capacity

20 m3/h



  Seal  Length | S

430mm×2



  Distance Between Seal Bar | B

390mm



  Alignment Of Seal Bar







  Chamber Depth | D / D*1

90/140mm



  Chamber Size

460×450mm



  Distance From Floor To Platform | A

850mm



  Power

1.5kW



  Connection*2

230V/50Hz



  Net Weight / Gross Weight

153/191kg



  Dimensions | W x L x H  (mm)

560×1050×925



  Shipping Dimensions (mm) 630×1140×1105



  Circle Time

3-4 times/min



*1 with high DOM-Lid     *2 could be customized

Related products

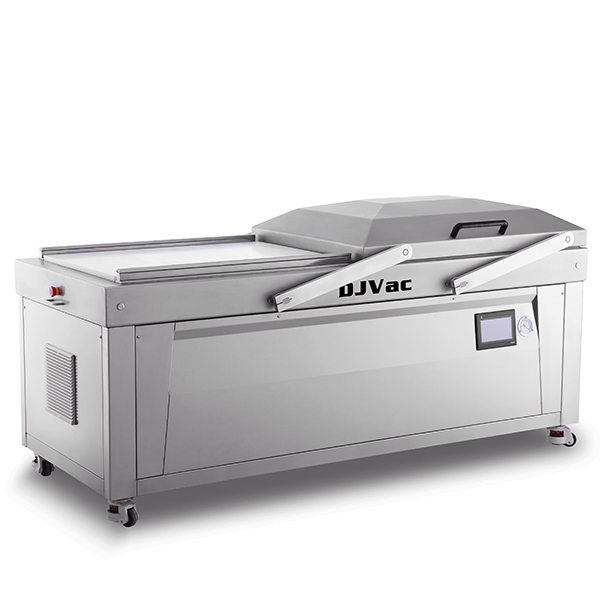

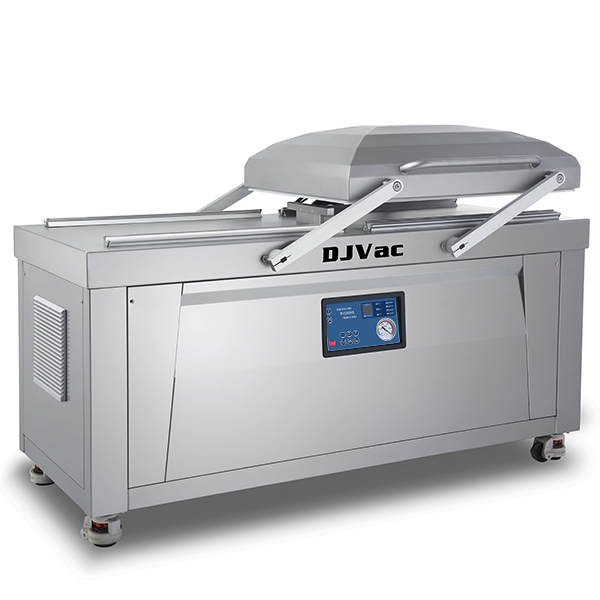

Double Chamber
