Manual Circlecut Manual Circlecut Tray Sealer

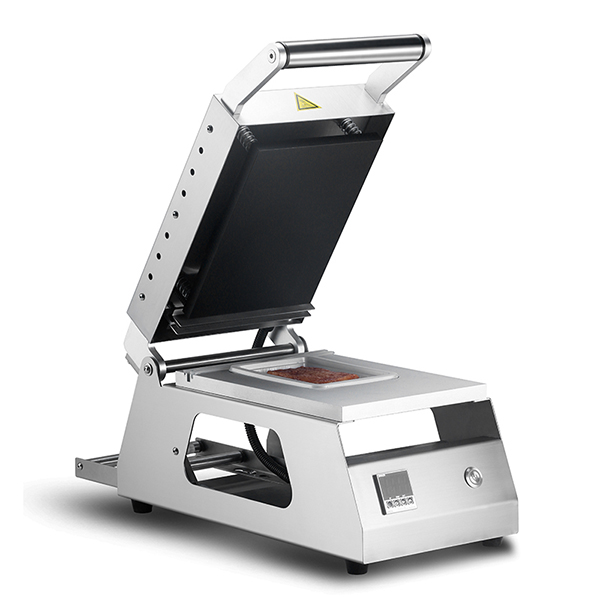

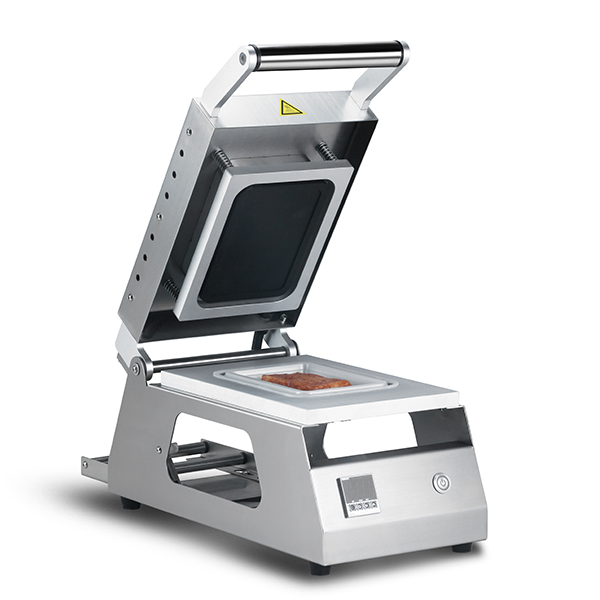

The Manual Tray Sealer is widely applicable to the package of raw and cooked meat, seafood, dairy product, fruit and vegetable, rice and flour food. It is an electrically heated, manual tray sealing machine, is used to seal the trays with lidding film. It is a simple and economical food packaging machine which is suitable for food shop and small food processing workshop.


Features:



Stainless steel construction

Down tray mould fast replacement






Electronic temperature controller

•  Brand

Friendly and simple in operation for user





Support customized mould

• Mould in customized dimension is acceptable to be made according to your own tray.

Beautiful cut film

























Examples:





Ready Food Duck

Technical Specification









  Model

DS-2 DS-4



  Max. Tray Size*1



  Sealing Plate

240×150mm 260×190mm



  Max. Depth Of Tray

100mm 100mm



  Max. Width Of Film

180mm 220mm



  Max. Diameter of Film

160mm 160mm



  Circle Time

up to 8/Min up to 8/Min



  Power Consumption 0.5kW 0.6kW



  Connection*2

230V/50Hz
230V/50Hz



  Net Weight / Gross Weight

15/19kg
17/22kg



  Machine Size | W x L x H  (mm)

630×256×260
650×296×260



  Shipping Dimensions (mm)

610×310×310
640×410×310







  *1 The machine is normally sold with one mould, and the mould could be customized.           *2  Connection could be customized.
